Power Supply for Electric Chain Hoists

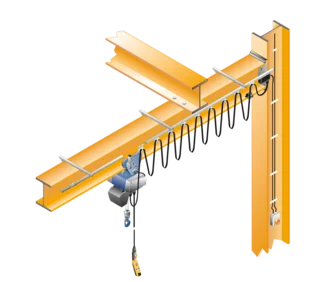

Power supply via festoon cable system
- Power supply using a flat cable which moves using a cable carrier in a C-rail fixed parallel to the trolley track
- Mounting using mounting brackets for clamping to a rolled section girder
- Suitable for track lengths up to 30 metres

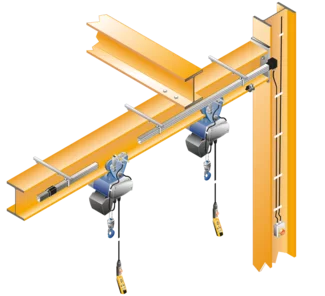

Power supply using conductor system
- Power supply using a safety conductor which is mounted parallel to the trolley track. The power is supplied using an end feed or line feed.
- Mounting using mounting brackets for clamping to a rolled section girder
- A line feed is required for track lengths of 30 metres and above.
